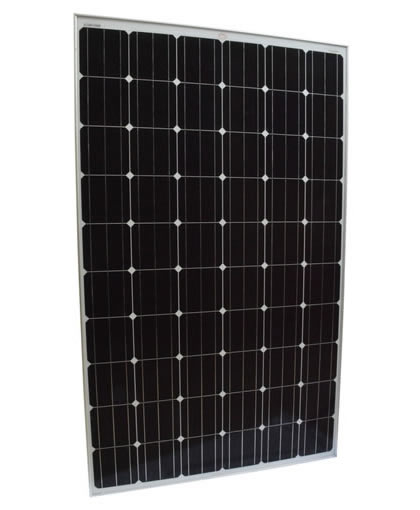

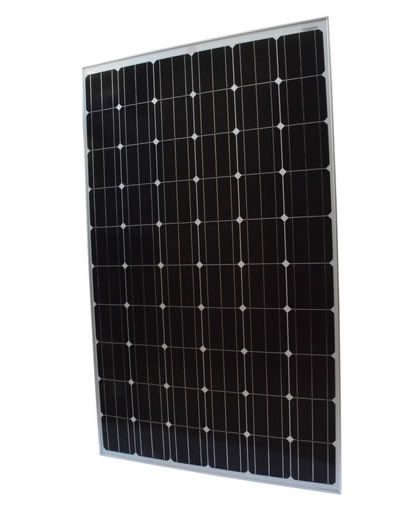

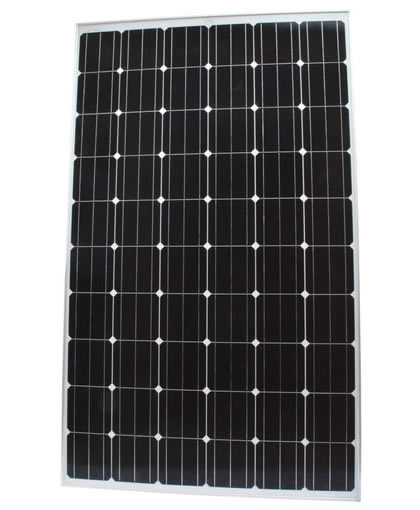

24V 350W Mono Solar Panel – ESP24V350W

Name: 24V 350W Mono Solar Panel - ESP24V350W
SKU: ESP24V350W
Price: 70000.00 NGN
Availability: OutOfStock

₦70,000.00

Out of stock

Compare

Maximum power 320W

Reviews

There are no reviews yet.

Be the first to review “24V 350W Mono Solar Panel – ESP24V350W”


Maximum Power at STC (Pmax):		250 W
Optimum Operating Voltage (Vmp):		30.7 V
Optimum Operating Current (Imp):		8.15 A
Open Circuit Voltage (Voc):		37.4 V
Short Circuit Current (Isc):		8.15 A
Module Efficiency:		15.4%
Operating Module Temperature:		-40 °C to +85 °C
Maximum System Voltage		30.10 V
Maximum Series Fuse Rating		20 A
Power Tolerance		0/+5 %
Mechanical Characteristics

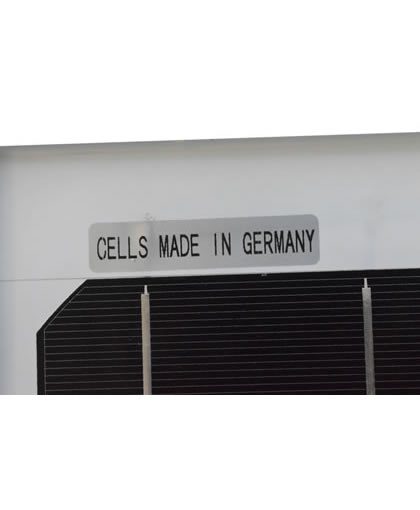

Solar Cell:	Monocrystalline silicon 156 × 156 mm (6 inches)
No. of Cells:	60 (6 × 10)
Dimensions:	1640 × 992 × 35mm (64.6 × 39.1 × 1.4 inches)
Weight:	18.2 kgs (40.1 lbs.)
Front Glass:	3.2 mm (0.13 inches) tempered glass
Frame:	Anodized aluminium alloy

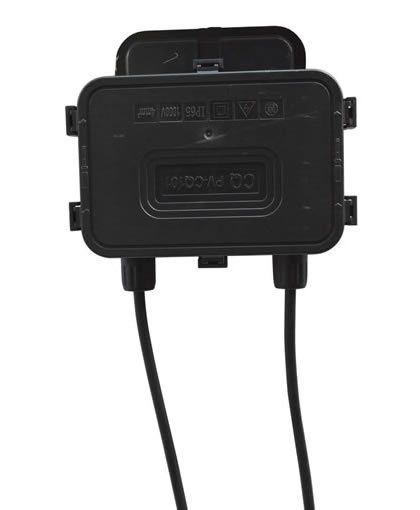

Connectors:	MC4 connectors
