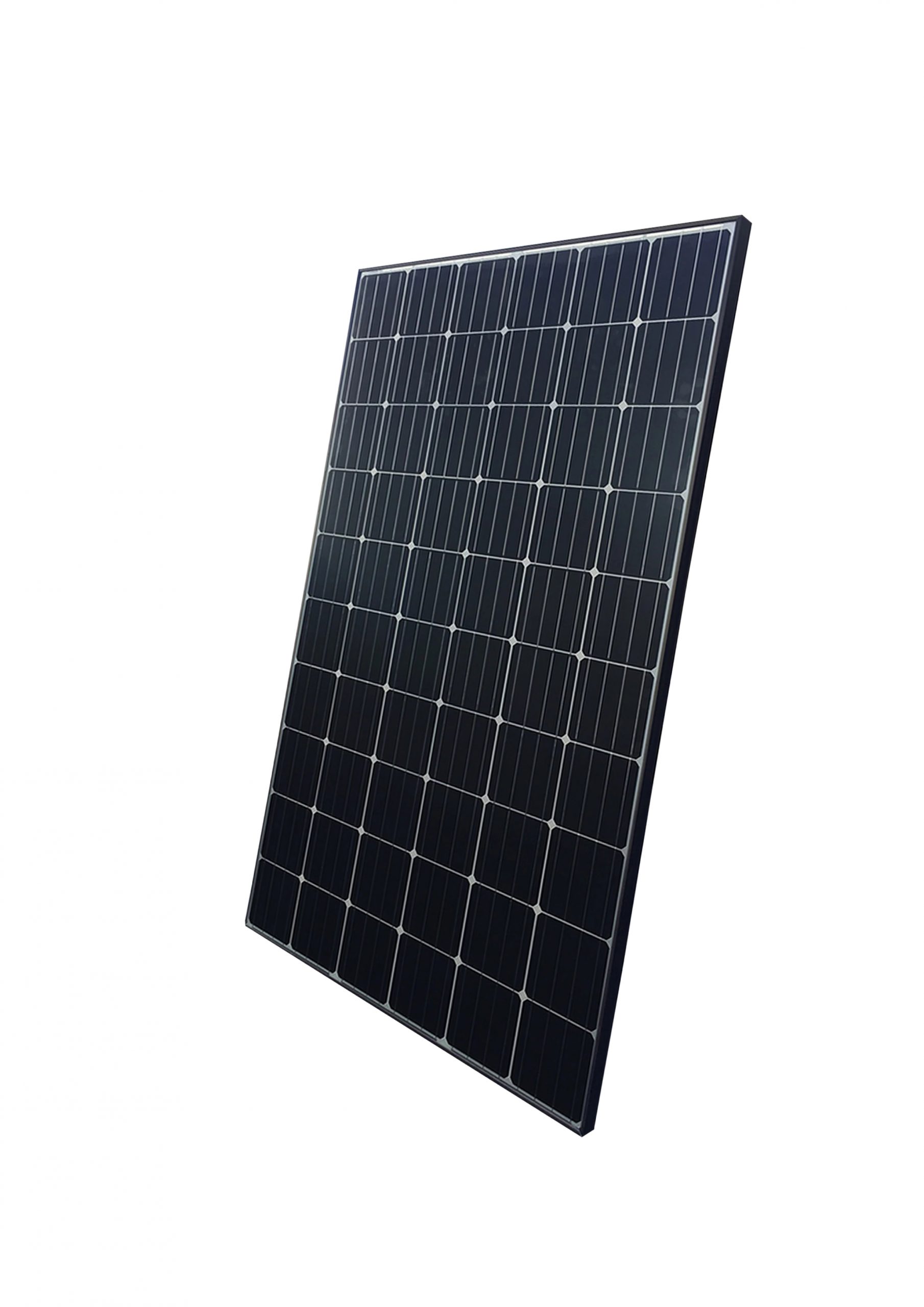

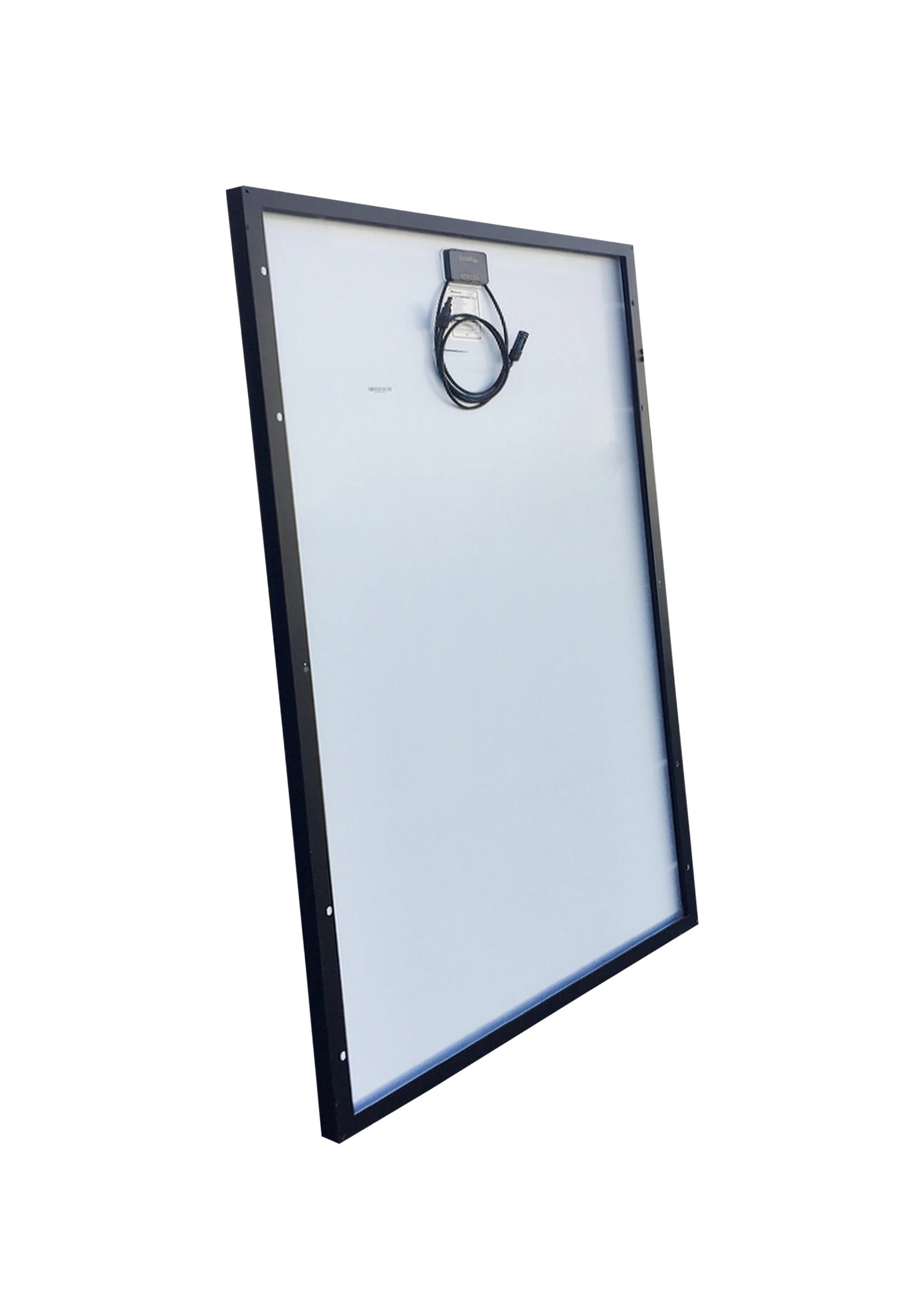

250 watts Solar panel

₦80,000.00

SKU: 250WHSP Categories: , , Tags: , , , , ,

Electrical parameters at STC

Maximum Power at STC (Pmax): 250 W
Optimum Operating Voltage (Vmp): 30.7 V
Optimum Operating Current (Imp): 8.15 A
Open Circuit Voltage (Voc): 37.4 V
Short Circuit Current (Isc): 8.15 A
Module Efficiency: 15.4%
Operating Module Temperature: -40 °C to +85 °C
Maximum System Voltage 30.10 V
Maximum Series Fuse Rating 20 A
Power Tolerance 0/+5 %










Mechanical Characteristics

Solar Cell: Monocrystalline silicon 156 × 156 mm (6 inches)
No. of Cells: 60 (6 × 10)
Dimensions: 1640 × 992 × 35mm (64.6 × 39.1 × 1.4 inches)
Weight: 18.2 kgs (40.1 lbs.)
Front Glass: 3.2 mm (0.13 inches) tempered glass
Frame: Anodized aluminium alloy
Connectors: MC4 connectors
Qty
Add to Wishlist
Compare

Harris 250W Monocrystalline Solar Panel is the perfect step to turning your house to solar. These panels have a voltage of 24V helping you cut the cost of your electrical bill or for big off grid system. If it is your choice to connect them to the electrical grid or as a power source for your off grid cabin, Harris 250W Mono-crystalline Solar Panels is always there to serve your purpose. These mono-crystalline panels are capable of withstanding extreme element, heavy snow, strong wind and other severe weather.
